Our current product and service offering
Sampler Processor SP-6G4-S
Sampler Processor SP-6G4-S
Sampler Processor SP-6G4-S
The SP-6G4S is a sampler and packetiser module that allows for the direct digitization of signals up to a frequency of 6.4 GHz, with an instantaneous bandwidth of approximately 3 GHz.
The SP-6G4S hosts a Xilinx KU11P FPGA which allows for the development of complex applications and algorithms. The standard interface of the SP-6G4S allow

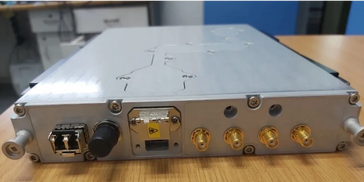

The SP-6G4S is a sampler and packetiser module that allows for the direct digitization of signals up to a frequency of 6.4 GHz, with an instantaneous bandwidth of approximately 3 GHz.
The SP-6G4S hosts a Xilinx KU11P FPGA which allows for the development of complex applications and algorithms. The standard interface of the SP-6G4S allows for data generated by the SP-6G4S to be easily interfaced with standard computer and network equipment.
The inclusion of a 12V(DC) power supply interface, clock reference and a synchronization signal allows for it to be easily deployed as a ruggedised and RFI hardened stand-alone data acquisition system which is ideally suited for harsh environments.
Synthesizer SYN-9G2-D
Sampler Processor SP-6G4-S
Sampler Processor SP-6G4-S
The SYN-9G2-D is a small form factor dual channel 20 MHz - 9.2 GHz synthesizer module featuring the popular Texas Instruments LMX2592 high performance wideband integrated phase locked loop.
Two harmonically dependant signals can be generated simultaneously. Signals can be configured to be referenced to either an internal or external refe
The SYN-9G2-D is a small form factor dual channel 20 MHz - 9.2 GHz synthesizer module featuring the popular Texas Instruments LMX2592 high performance wideband integrated phase locked loop.
Two harmonically dependant signals can be generated simultaneously. Signals can be configured to be referenced to either an internal or external reference signal. Factory configurable output filters allows for optimization for each application.
The module is powered and configured via USB type C connector and is easily controllable via open source python scripts. The small form factor of 80 x 80 x 20mm (TBC) allows for easy integration in many applications.
Transceiver TRX-6G4-S
Sampler Processor SP-6G4-S
Transceiver TRX-6G4-S
The TRX-6G4-S enhances the existing receive capability of the SP-6G4-S by adding a matching wideband transmit chain. Other upgrades include two additional ADC input channels as well as an additional FireFly optical transceiver module.
We are developing the TRX-6G4-S in collaboration with AISI and are expecting completion by March 2024.
